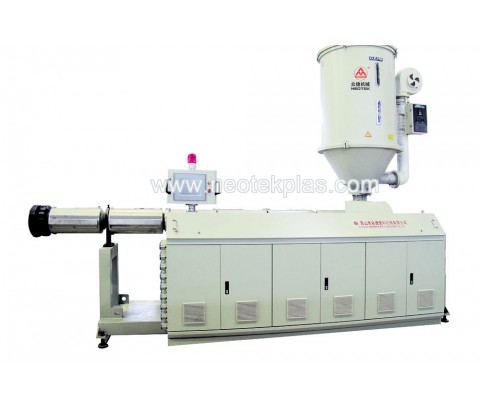

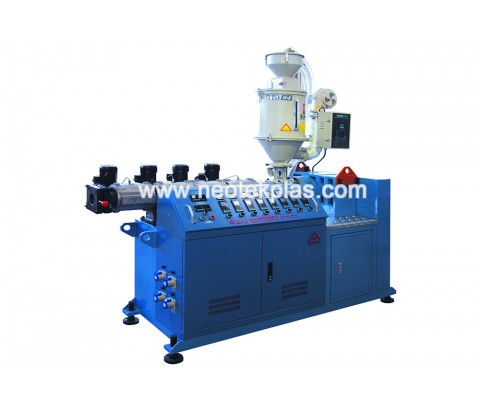

Screw diameter from 20mm-150mm, mainly suitable for extrusion of polyolefin and PVC plastic extrusion.
型號Model | 長徑比L/D | 產量（kg/h） | 螺桿轉速 ) | 驅動功率 | 中心高 |
ZJS20 | 20:1 | 3-5 | 10-60 | 1.1/1.5/2.2 | 1000-1400 |
ZJS25 | 25:1 | 5-8 | 10-60 | 2.2/3.0/4.0 | 1000-1400 |
ZJS30 | 25:1 | 5-10 | 10-60 | 2.2/3.0/4.0 | 1000-1400 |
ZJS45 | 25-33:1 | 10-120 | 10-150 | 5.5-22 | 1000-1400 |
ZJS65 | 25-33:1 | 60-300 | 20-150 | 22-75 | 1000 |
ZJS75 | 25-33:1 | 200-450 | 20-150 | 30-132 | 1000 |
ZJS90 | 25-33:1 | 180-600 | 20-110 | 37-185 | 1000-1100 |
ZJS120 | 25-33:1 | 320-1000 | 20-90 | 75-280 | 1000-1250 |
ZJS150 | 25-33:1 | 400-1300 | 20-75 | 90-400 | 1000-1300 |
